1：Technical Data
Displacement (1450rpm 50Hz)：73,7 m³/h
Displacement (1750rpm 60Hz)：88,83 m³/h
No. of cylinder x bore x stroke：4 x 70 mm x 55 mm
Weight：207 kg
Max. pressure (LP/HP)：19 / 32 bar
Connection suction line：54 mm – 2 1/8”
Connection discharge line：28 mm – 1 1/8”
Oil type R134a/R407C/R404A/R507A/R407A/R407F：BSE32(Standard) | R134a tc>70°C: BSE55 (Option)
Oil type R22 (R12/R502)：B5.2(Option)
Oil type R1234yf：BSE32 (Standard) | R1234yf tc>70°C : BSE55 (Option)
Oil type R1234ze：BSE55 (Standard) | to>15°C: BSE85K (Option) | tc>70°C: BSE85K (Option)
Oil type R454C/R455A：BSE32 (Standard)

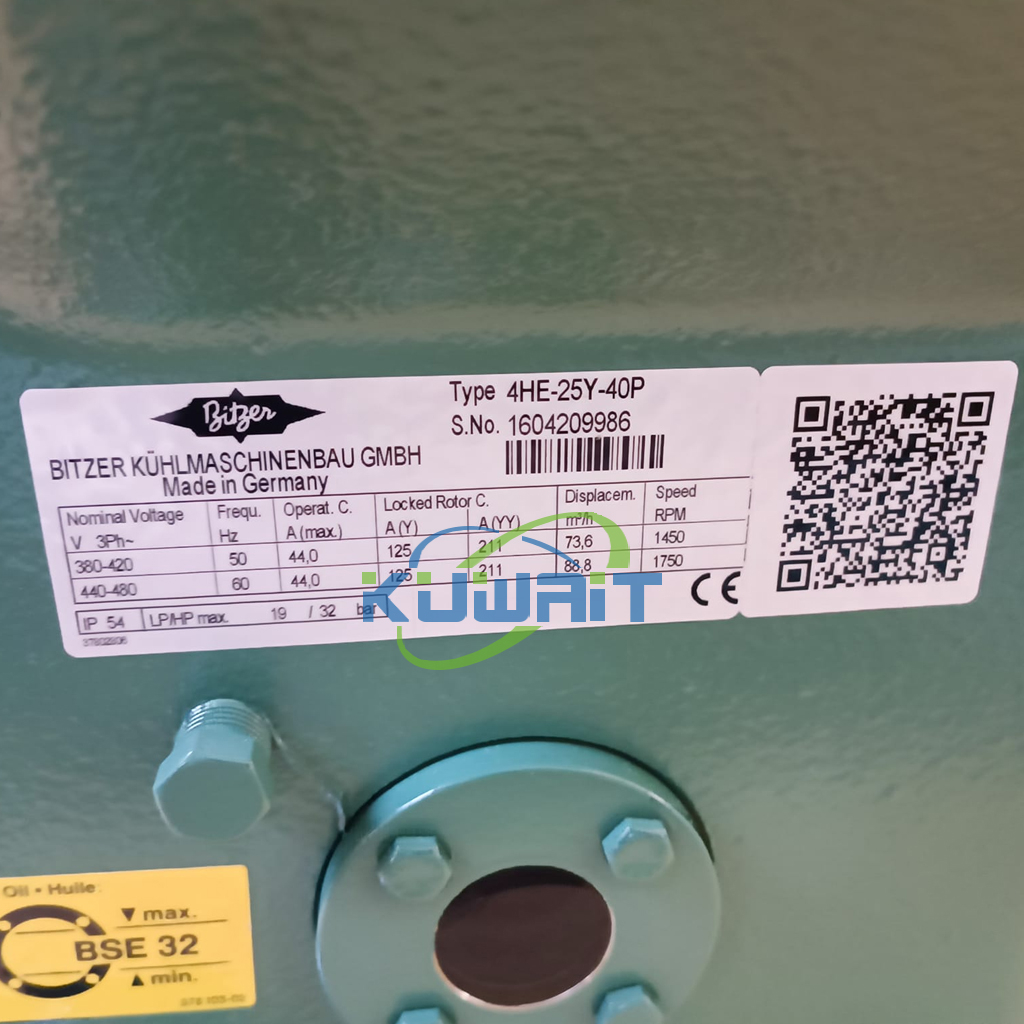

2：Motor data
Motor version：1
Motor voltage (more on request)：380-420V PW-3-50Hz
Max. operating current：44.0 A
Winding ratio：50/50
Starting current (Rotor locked)：125.0 A Y / 211.0 A YY
Max. power input ：25,0 kW
