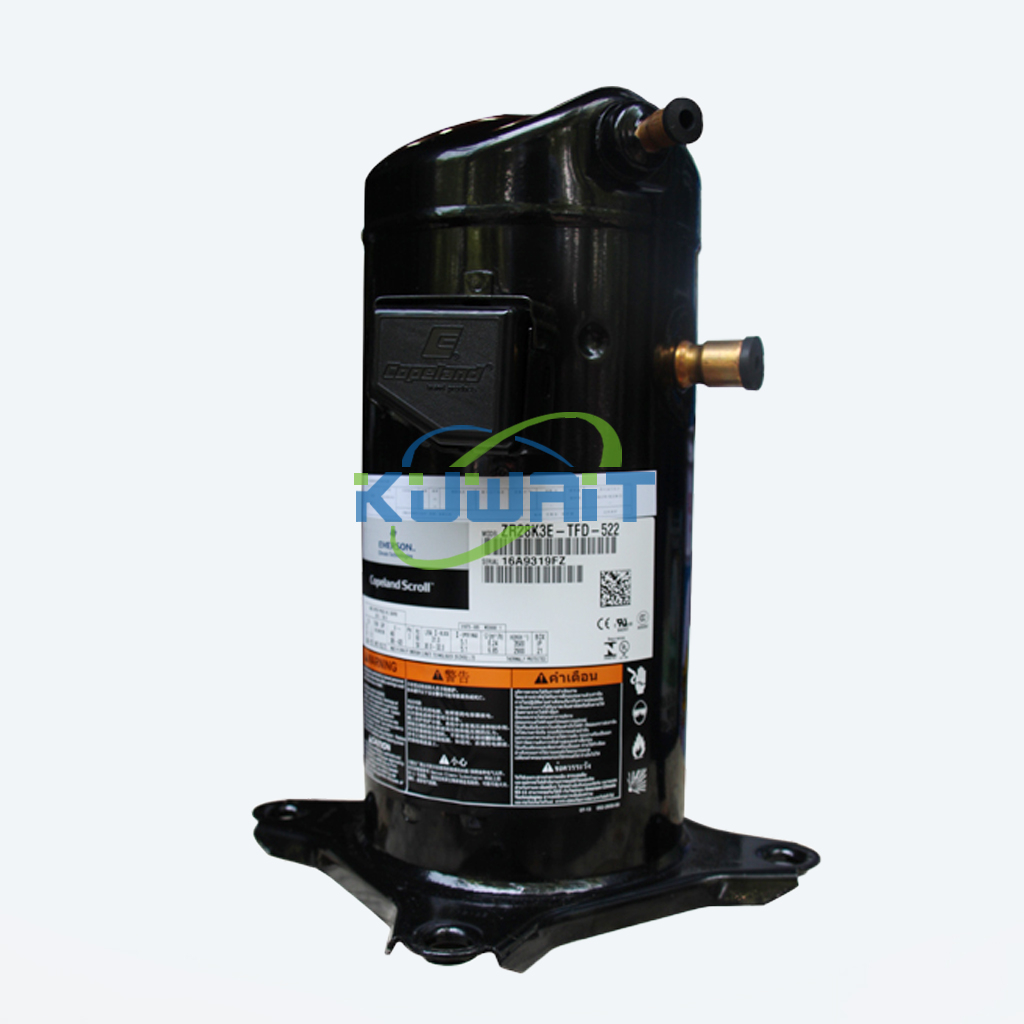

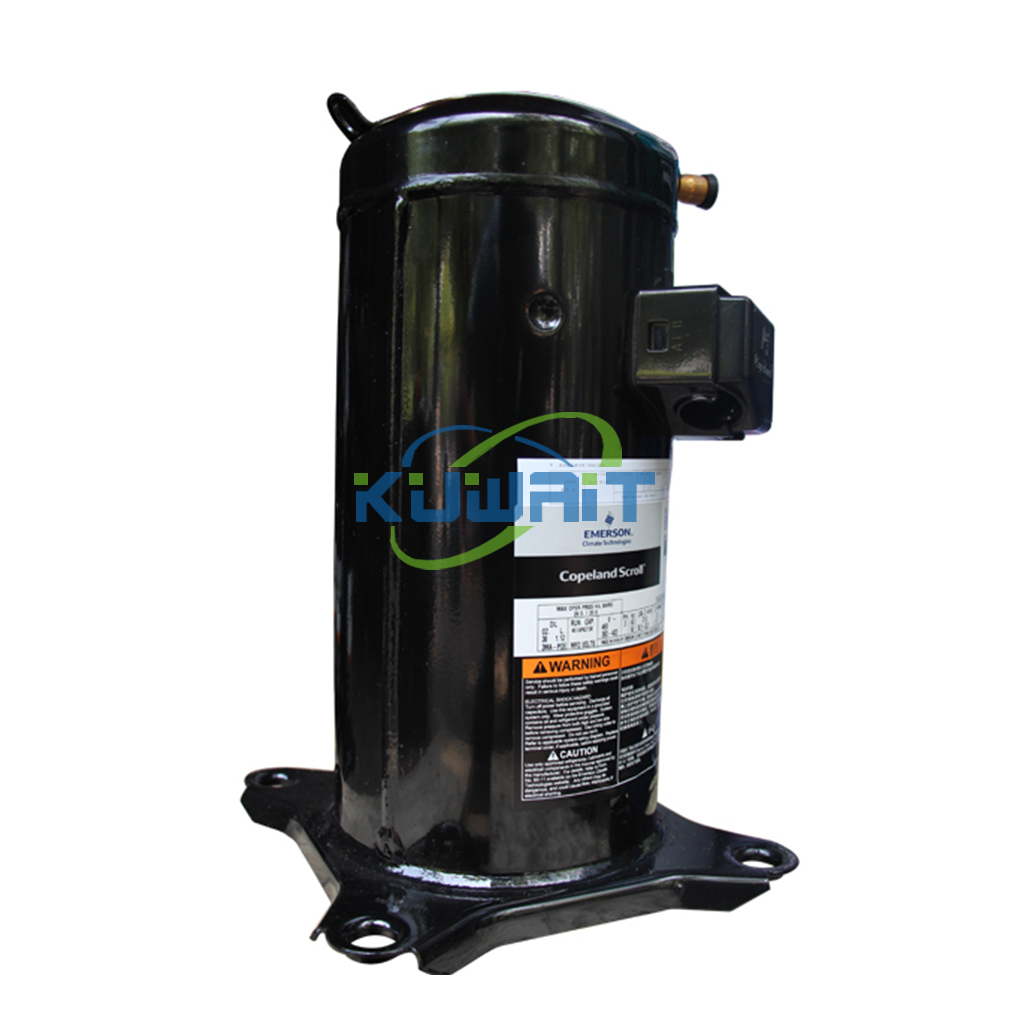

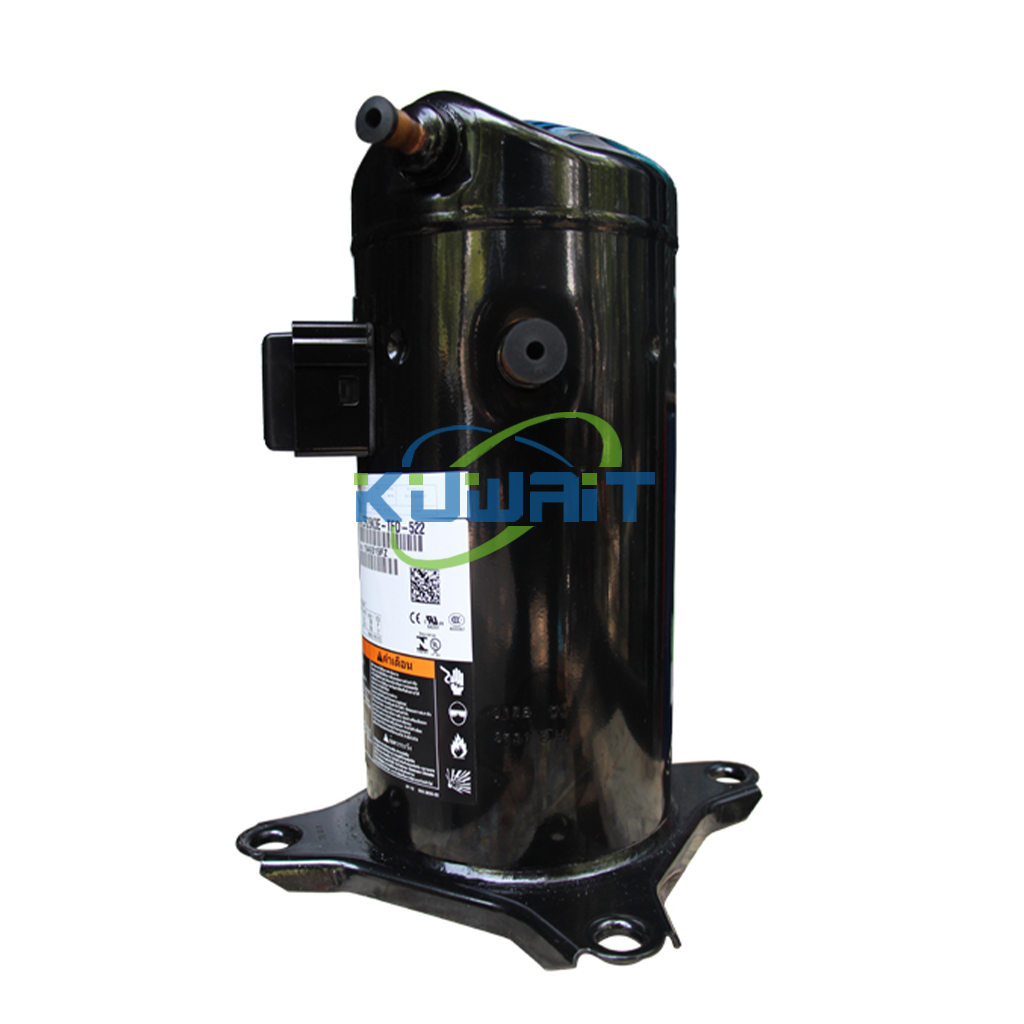

Model：ZR28K3E-TFD-522
Applications：Air Conditioning
Compatible Refrigerants：R-134a/R-22/R-407C
Cooling Capacity [kW]：5.88
COP：2.99
Displacement [m³/h]：6.83
Enclosure Case：IP 21 (IEC 34)
Frequency [Hz]：50/60
Gross Weight [kg]：25.4
Height [mm]：377
Length [mm]：246
Low/High Side PS [bar] [g]：20/29.5
Maximum Operating Current [A]：5.1
Oil Type：POE
PED Category：I
Performances Given At Conditions：5°C evap. temp.; 50°C cond. temp.; 10 K suction superheat; 0 K subcooling for R-407C at 50 Hz
Phase：3
Power Input [kW]：1.96
Product Family：Copeland Scroll A/C
Single/Tandem：Single
Sound Power [dBA]：68
Voltage：380-420 460
Voltage@Hz：380-420 V at 50 Hz, 460 V at 60 Hz
Width [mm]：246
